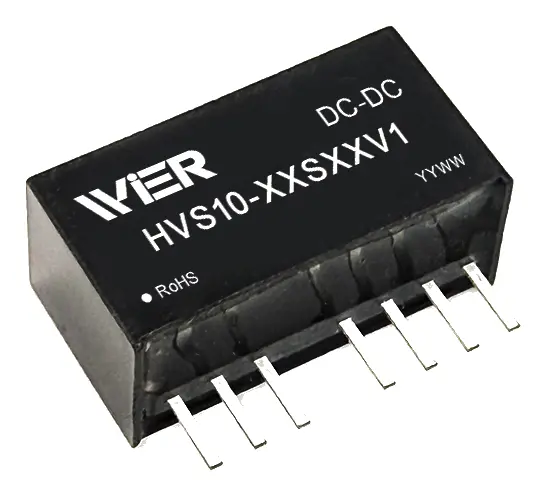

HVS10-24S06V1
6V Single Output 10W SIP-8 Isolated DC-DC Converter
10W isolated DC-DC converter (SIP-8 package)
Wide 4:1 input range – 24V Input (9-36V)
6V Single Output, regulated
1600VDC input-output isolation
Operating temperature -40 ~ +85°C
UL94V-0 case, UL/EN/IEC certified
Continuous short-circuit & over-current protection, self-recovery
Wide 4:1 input range – 24V Input (9-36V)
6V Single Output, regulated
1600VDC input-output isolation
Operating temperature -40 ~ +85°C
UL94V-0 case, UL/EN/IEC certified
Continuous short-circuit & over-current protection, self-recovery
