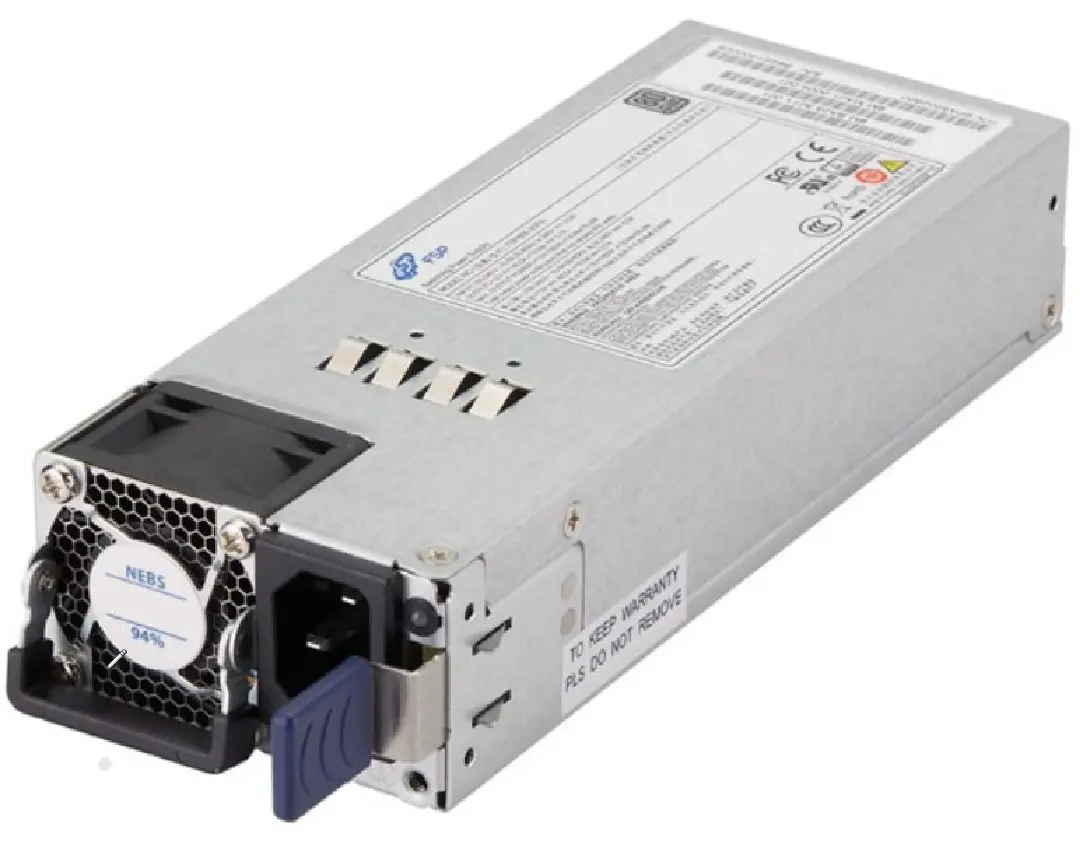

FSP300-22FN
FSP300-22FN
Output Voltage
12 V
Wattage
300 W
Series
FSP300
12V CRPS Redundant Power Supply Module
300W - Hot-swap redundant power supply module built to the CRPS standard.
Universal Input: 90-264 VAC, or 180-310 VDC High Voltage DC.
80 PLUS Platinum Efficiency.
PMBus 1.2 Digital Communication with the Host System.
Main 12V Output up to 24.6A, plus a 12V Standby Rail up to 3A.
Meets the NEBS Standard, Surge Immunity Greater Than 6kV.
Over Current, Over Voltage and Over Temperature Protection.
Rated for Operation up to 5,000 Metres Above Sea Level.
MTBF 250,000 Hours at 55℃ and 75% Load.
Working Temperature 0 to +55℃.
CB 62368-1 Certified.
Dimensions: 185 x 73.5 x 39mm.
Universal Input: 90-264 VAC, or 180-310 VDC High Voltage DC.
80 PLUS Platinum Efficiency.
PMBus 1.2 Digital Communication with the Host System.
Main 12V Output up to 24.6A, plus a 12V Standby Rail up to 3A.
Meets the NEBS Standard, Surge Immunity Greater Than 6kV.
Over Current, Over Voltage and Over Temperature Protection.
Rated for Operation up to 5,000 Metres Above Sea Level.
MTBF 250,000 Hours at 55℃ and 75% Load.
Working Temperature 0 to +55℃.
CB 62368-1 Certified.
Dimensions: 185 x 73.5 x 39mm.
(1.43MB)
FSP300-22FN 300W CRPS redundant power supply module datasheet
