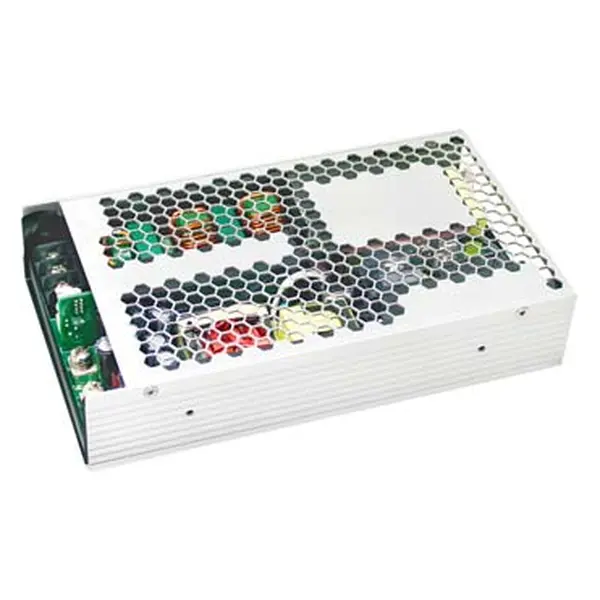

ARF1300E-12S
12V 1300W Semi-Potted Baseplate-Cooled Power Supply
108A Max Output (12V model)
Universal AC Input 90-264 VAC, Active PFC (PF≥0.9)
1300W with 40CFM fan / 800W conduction-cooled / 650W convection
Semi-Potted, Baseplate / Conduction Cooling
High Efficiency up to 93%
I/O Isolation 4250 VAC, Over-Voltage Category OVC III
Operating Altitude up to 5000 m, 5V Standby Output
Protections: Over-Voltage / Over-Current / Over-Temperature
UL / IEC / EN 62368-1 Approved · 3-Year Warranty
Universal AC Input 90-264 VAC, Active PFC (PF≥0.9)
1300W with 40CFM fan / 800W conduction-cooled / 650W convection
Semi-Potted, Baseplate / Conduction Cooling
High Efficiency up to 93%
I/O Isolation 4250 VAC, Over-Voltage Category OVC III
Operating Altitude up to 5000 m, 5V Standby Output
Protections: Over-Voltage / Over-Current / Over-Temperature
UL / IEC / EN 62368-1 Approved · 3-Year Warranty
Approvals & Compliance
CEUKCARoHSIEC/EN/UL 62368-1UL ListedCB Scheme
